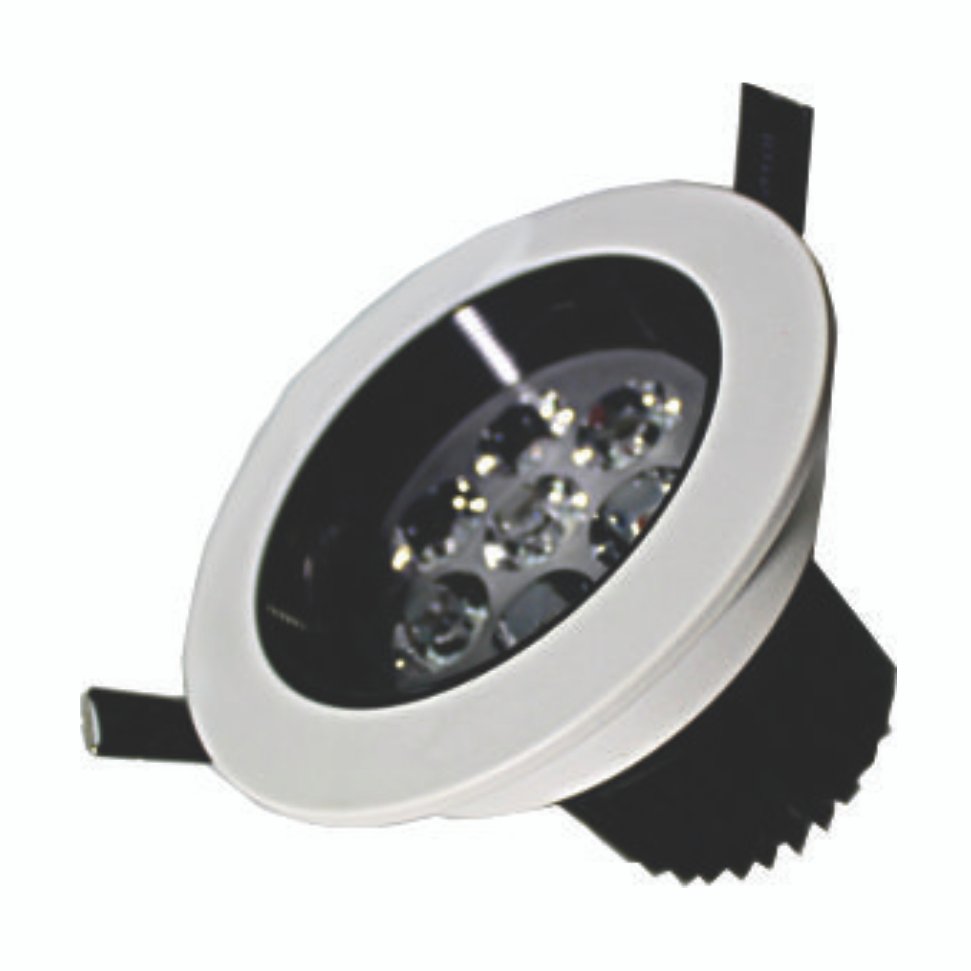

HC-S0707-WW
Đèn spot light, 7 LED, IP60
Công suất: 7W, Lumen: 665Lm
Điện áp: 110v-220v
Đường kính ngoài: 100
Đường kính khoét trần: 90
Góc chiếu sáng: 120º
Vỏ: hộp kim nhôm, màu trắng
Độ bền LED: 50.000 giờ
Sản phẩm cùng mục
Dance floor display
Features
Fast and flexible installation: no direct installation or rail installation can be use
High contrast design: technical design mask.clear play
Excellent low brightness and high gray effect, showing the uniformity of gray uniformity and good consistency 11 / 12
High load-bearing: Die -Casting Aluminum case, with a high loading capacity of 1.5 tons per square meter
Excellent maintenance: it can be exchanged directly without removing adjacent cabinet
Product Parameter
HC-WT0703
Đèn Stage Lamp, 7 pcs LED, IP60
Công suất: 7 W,
Lumen: 100 - 110Lm/W
Điện áp: 110v - 220v
Đường kính ngoài: Φ120
Chùm tia sáng: 25 độ,
Vỏ: hộp kim nhôm, Màu: Đen
LED STREET LIGHT MSL Series
ITEM No. : MSL-A50
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 144pcs
Beam Angle: Type Ⅱ, Type Ⅲ, Type Ⅳ
Luminous Flux: > 8000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 50W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 4kg/4.5kg
Product/CTN Size: 484*230*127mm/417*264*155mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A100
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 216pcs
Beam Angle: Type Ⅱ, Type Ⅲ，Type Ⅳ
Luminous Flux: > 16000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 100W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 5kg/5.5kg
Product/CTN Size: 548*230*127mm/482*272*160mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A150
Input Voltage: 85-305V AC 12V/24V DC
Led Lamp: PHILIPS 3030 LEDs 288pcs
Beam Angle: Type Ⅱ，Type Ⅲ，Type Ⅳ
Luminous Flux: > 24000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 150W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 6.4kg/7kg
Product/CTN Size: 598*257*129mm/542*302*160mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
ITEM No. : MSL-A200
Input Voltage: 85-305V AC
Led Lamp: PHILIPS 3030 LEDs 320pcs
Beam Angle: Type Ⅱ，Type Ⅲ，Type Ⅳ
Luminous Flux: > 32000LM (160LM/W)
LED Driver: CE, TUV driver
CCT: warm white (2700-3500k), Pure white (4000-5000k), Cool white (6000-6500k)
Led Power: 200W
Material: Die-casting Aluminum+Optical Lens
IP Grade: IP66
NW/GW: 6.4kg/7kg
Product/CTN Size: 655*320*131mm/612*372*185mm
Fitment Baser: Slip fitter
PF Rate: ＞0.95
CRI: ＞80
Life span: 50000h
Strip light 3528 Double Color
|
Model |
Input |
FPCB |
Led Qty |
Watt/M |
LM/M |
|
3528-120D |
12V/24V |
10MM |
120 |
9.6 |
7.8LM |
Ra: 70
CCT: 2700K/3000K/3500K/4000K
Max solder joint temperature: 70°C
Warranty: 2 year
